Eltima Serial Port Splitter

Serial Splitter is a versatile application that allows you to split one port among several applications in such way that they can all get the same data at the same time. Each application will communicate with a separate virtual port, while in reality they'll work with the same real port at a time. It is also possible to join several ports into one, redirect data from one port to another, create complex bundles. Serial Splitter works great with real COM ports as well as with virtual ones.

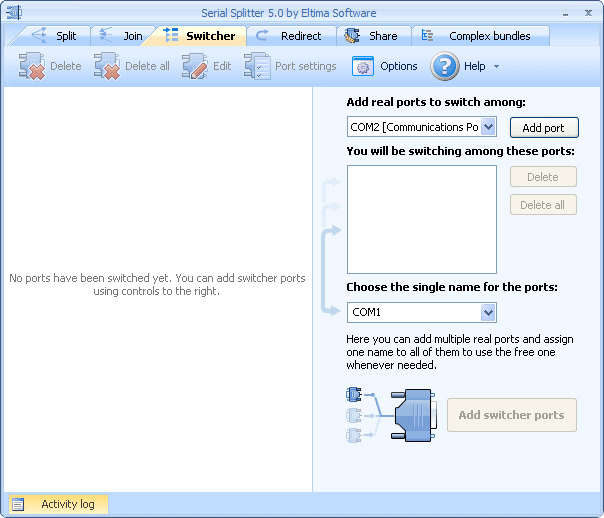

With new version Serial Splitter has added the switcher option to its baggage. Switcher allows to automatically determine the free port in the list of specified COM ports and assign it to the application that needs to work with it now. Moreover now Serial Splitter logs all events, so you can easily see which application opened the port and what parameters were used.

With Serial Splitter you can create:

One-to-many ports connection
With Serial Splitter you can split one COM port into several virtual ones, which are exact copies of the original port in the system. For instance, Serial Splitter can split real COM1 into virtual COM2, COM3, COM4 ports.

Alternatively you can share one real port among many applications without splitting it to several different virtual COM ports.

Many-to-one ports connection
Serial Splitter can join any number of COM ports into one virtual serial port, thus allowing information from several devices to be received by a single application connected to the port at the OUT side of the bundle

Many-to-many ports connection
Serial Splitter and its easy-to-understand assisting charts let you arrange complex bundles of COM-ports. You will be able to establish a connection between any number of real and virtual serial ports in either incoming or outgoing direction. Besides serial port data transmission, Serial Splitter provides the option to set Main Port for each side (IN/OUT) to manage control lines of a corresponding serial port.

Full features list:

• Unique all-in-one functionality: split, join serial ports, redirect data
• Share one real port among multiple applications
• Create advanced ports bundles - combinations of real and virtual serial ports
• Create as many virtual serial ports as you need
• Full emulation of hardware control lines
• Ports bundles are automatically configured every time you boot your PC, so you don't have to recreate them again
• Serial ports are created and re-configured in real-time
• Full support of wide range of GPS devices and software
• Fully compatible with HyperThreaded and multi-processor systems
• Bidirectional data transfer
• High speed data exchange from/to virtual serial port
• Full baudrate and flow control support
• Hot installation without any need to reboot
• User-friendly interface
• Customize real serial port connection parameters (baudrate, parity, flow-control, databits and stopbits)
• Possibility to create port bundles via the registry (for OEM license owners)
• Fully compatible with Windows 2000/XP/2003/2008, Windows Vista, Windows 7, all 64-bit platforms
• Possibility to connect to any free port from a bunch using the same name for these ports
• Possibility to set read and write rights for every port
• History log of the usage of ports by applications
